Scorpion HK-3020-1000KV - Goblin 380

Art.Nr.:
Hersteller:Scorpion

Goblin 380 - 6S Power Motor von Scorpion, 1600W, 153 Gramm ...

UVP

Der Power Goblin 380 Motor von Scorpion - HK-3020-1000scorpion-power-systems.png
crazy power you cannot even imagine it !


Technische Daten:

  • Stator Diameter: 30.0 mm(1.181 in)
  • Stator Thickness: 20.0 mm(0.787 in)
  • No. of stator Arms: 12
  • No. of stator Poles: 10

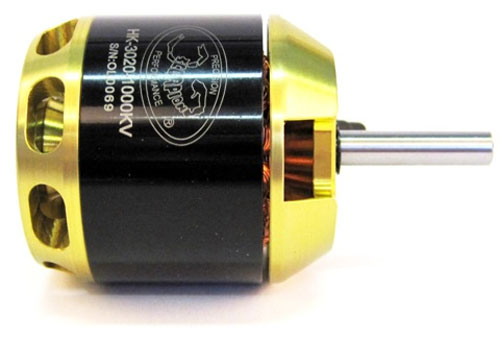

  • Motor Wind: 6+7 Turn Deltascorpion-hk-3020-1000.jpg
  • Motor Wire: 12-Strand 0.25 mm
  • Motor Kv: 1000KV RPM/Volt
  • No-Load Current (IO/10V) 1.75 Amps
  • Motor Resistance(RM): 0.030 Ohms
  • Max Continuous Current: 45 Amps
  • Max Continuous Power: 1050 Watts
  • Weight: 153 Grams (5.39 oz)

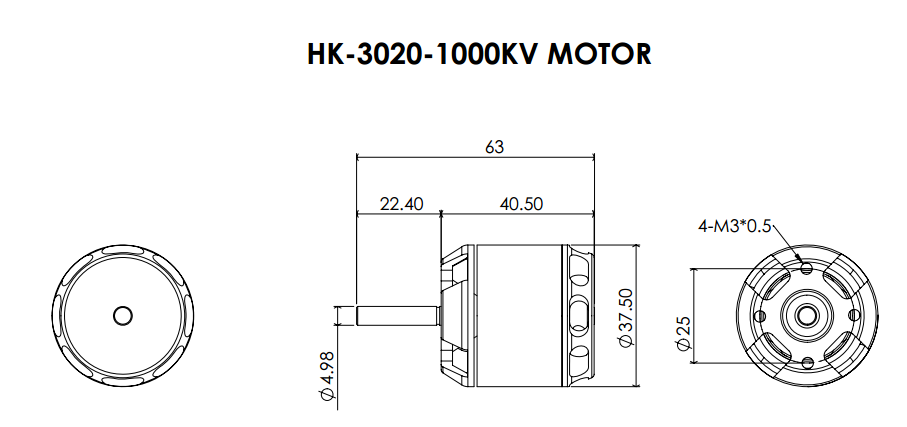

  • Outside Diameter: 37.5 mm (1.476 in)
  • Shaft Diameter: 4.98 mm (0.196 in)
  • Body Length: 40.5 mm (1.594 in)
  • Overall Shaft Length: 63.0 mm (2.480 in)
  • Max. Peak Current: 70 Amp (2 Seconds)
  • Max. Peak Power: 1600Watts (2 Seconds)
  • Max. Lipo: 6S
  • Drive Frequency: 8kHz

Included in the Box
1 x Scorpion HK-3020-1000KV 5mm shaft motor
3 x Female Connectors
3 x Heat Shrink
4 x M3*0.5 Screws

Weight including packaging 345g


HK-3020-1000KV provide a crazy power you cannot even imagine it !

The Scorpion HK-30 series motors have been developed for the newer electric helicopter that are now coming onto the market. This HK-3020-1000 KV motor designed to provide all the crazy power that you even can't imagine for Goblin 380, while still maintaining excellent efficiency and cool running characteristics.

Scorpion HK-30 Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold anodized to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to with stand high temperatures, making a motor that is virtually impossible to burn up in normal use.

This motors come with 4.0mm male bullet style connectors already attached, and include a hardware package that contains 3 matching female Bullet connectors for your speed controller with matching heat shrink tubing. For maximum strength, motors feature an 5 mm diameter at the output shaft to fit standard size pinion gears.

Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. However, due to the high RPM of these motors, and the fact that we cannot control the installation and setup, the bearings are not covered by the 2-Year warranty, nor is any subsequent damage caused to the motor by a bearing failure. Bearings are a normal wear item, and as such, need to be maintained and changed periodically. For maximum life, make sure that a sufficient gap is left between the pinion and main gear during motor installation to avoid binding, and put a small drop of oil on each bearing every 5-6 flights. It is the responsibility of the pilot to ensure that the bearings are maintained properly.

For the best overall combination of quality, performance, and value, use Scorpion Motors in your helicopter!
